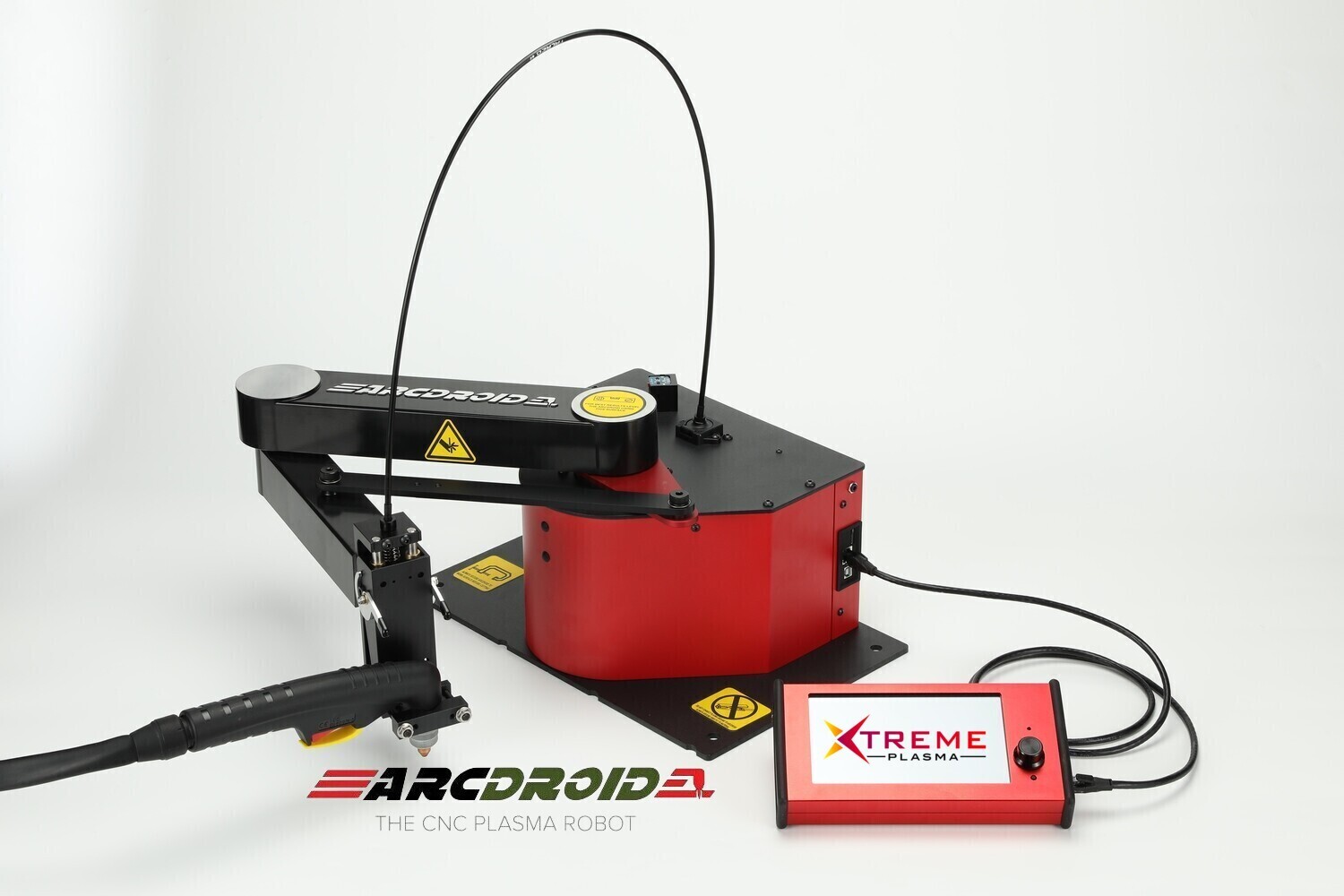

ArcDroid CNC Plasma Robot

• Onboard Simple Trace™ software means no PC or external software required
• Easy to read glove friendly touch screen Interface
• Works with most hand held plasma cutters * (Non HF)
• Compatible with CAM programs such as
• Fusion 360,
• SheetCAM (Sheetcam Recommended)
• QCAD
• Save your projects as DXF or G-Code Files
• Easy USB import of DXF and G-Code Files †
• Lightweight and portable less than 17 Kg (38 Lbs)
• Compact form factor 50 x 36 x 25 cm (20 x 14 x 10 inches)

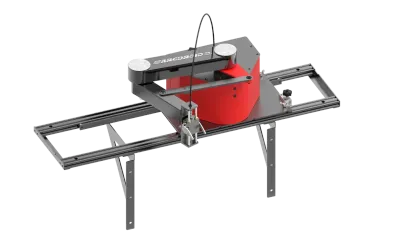

• Can be repositioned easily to increase total cut envelope
• Programmable pierce and cut heights
• Adjustable kerf compensation
• Full mechanical Z probing on every cut start
• Auto level and Torch Height Compensation features for uneven material **
• Programmable pierce and finish delays

• Large cutting envelope, 660 x 380mm ( 26 x 15 inches)
• 65mm Z travel (2.5 inches”)
• Max cut speed 5,000mm/min (200”/min)
• Max travel speed 8,000 mm/m (315”/min)
• 240V version
• UL/CSA Certified
• CE Certified

* Requires low frequency start Plasma cutter. High frequency start plasma cutter can cause unpredictable results and
possible damage to the ArcDroid™
† File size limits apply
** THC Requires compatible plasma cutter with 50:1 divided voltage output .
