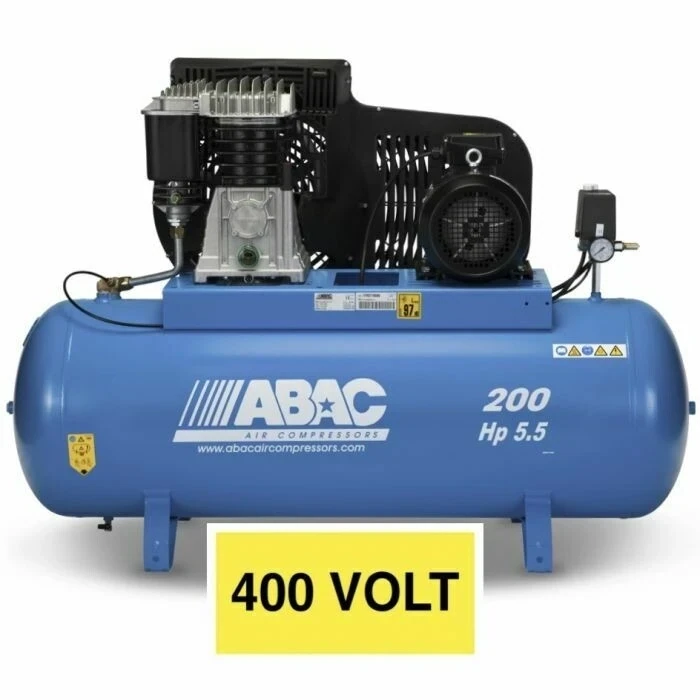

Abac PRO B5900B 200 FT5.5
SKU 4116019759
200Litre Tank Stationary compressor 400v 16Amp Suitable for 50-125amp Plasma's
£1,033.00
Online Only
In stock: 1 available
1
Tax's & Shipping Costs Calculated at Checkout
Abac PRO B5900B 200 FT5.5
Product Details
Abac PRO B5900B 200 FT5.5 stationary compressor 5.5hp 17.7 CFM (FAD) 200 ltr receiver 400 volt 16 amp (Free Uk Shipping)
This Product is shipped direct from Abac (will not ship overseas)
Xtreme Engineering & Abac do not supply a fitted plug please use a Qualfied Electrian for installation
1 year warranty subject to terms and conditions
please check direction of rotation during install
Abac lubricated compressors come with cast iron cylinders for long life, and the slow running pump unit gives low noise and long durability. Slow running belt drive for smooth efficient operation.
Each unit is supplied with a comprehensive instruction booklet, which illustrates the safe working practices appropriate to the use of compressed air. Each unit also boasts a 12 month warranty and Nationwide Back Up should you need it.
At the heart of every ABAC reciprocating air compressor is a genuine ABAC pump unit. A world proven design offering superb quality and guaranteed reliability with the added assurance of the unrivaled back up and support provided by one of world's largest manufacturers of air compressors.
Superior valve and cylinder head design. Precision engineered for efficiency and reliability.
Inter cooler, after cooler, large flywheel and unique specially designed shroud ensure cooler operation minimizing wear to valves and cylinders whilst allowing easier removal of downstream condensation Combined cast iron and alloy cylinders and all cast iron cylinders fitted to larger units provide the benefits of long life with efficient cooling.
Dual oil scraper piston rings, efficient air intake filtration and cooler operation provide better quality compressed air.
Oversized roller bearings, high quality materials, robust proven design and solid construction provide durability.
Oil level sight glass, easily accessible air filter and a separate valve plate arrangement allow simple maintenance.
| Specification | Value |
|---|---|
| Performance data | |
| EAN Code | 8024900501223 |
| Max Pressure (Bar) | 10 Bar |
| Max Pressure (Psi) | 145 PSI |
| Pump speed | 1400 Rpm |
| Vessel size (lt) | upto 500 Liter* |
| Vessel size (gal) | upto 132 Gal* |
| Configuration | Stationary |
| Air Displacement (l/min) | 653 l/min |
| Air Displacement (cfm) | 23.1 Cfm |
| Lubrication | Oil Lubricated |
| Oil capacity | 1.5 Liter |
| Pump Element | B5900B |
| Motor (hp) | 5.5 Hp |
| Motor (kw) | 4.1 kW |
| Supply voltage | 400 V |
| Frequency | 50 Hz |
| Number of phases | 3 |
| Noise Level (LPA) | 75 dB(A) |
| Noise Level (LWA) | 95 dB(A) |
| Fuel type | n.a. |
NO WHEELS INCLUDED
Air Hose to be purchased separately
No Fittings Included
Free Mainland UK Shipping
